Capabilities

  • Maximum machining diameter  -  36"

  • Maximum OD turning length  -  40"

  • Maximum ID boring length  -  20"

  • Maximum through spindle diameter  -  6.5"

  • Maximum 5-axis milling diameter  -  22"

  • Maximum 3-axis milling envelope  -  20" x 40" x 16"

  • In addition to in-house services, Willard Tool has established a network of reliable vendors to ensure finished parts meet all specifications.



*Machining limits are general guidelines and may vary based on individual job requirements.

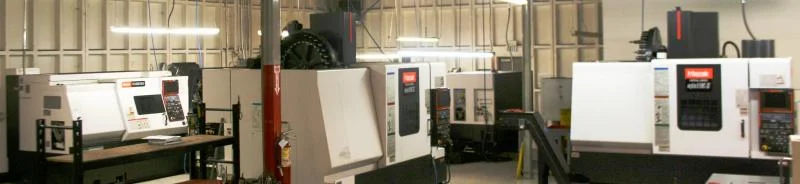

Equipment

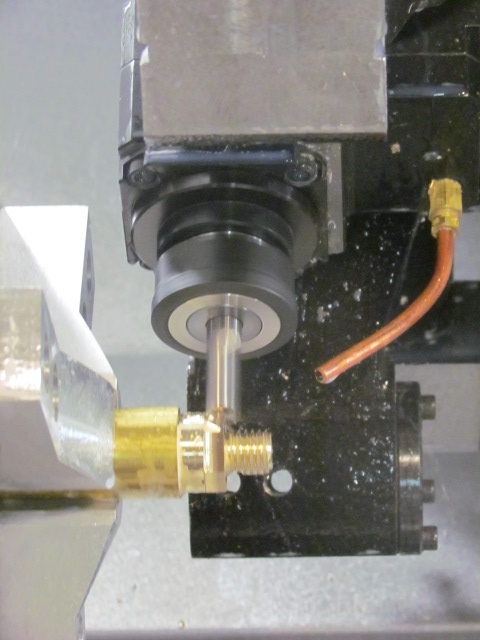

Multi-axis

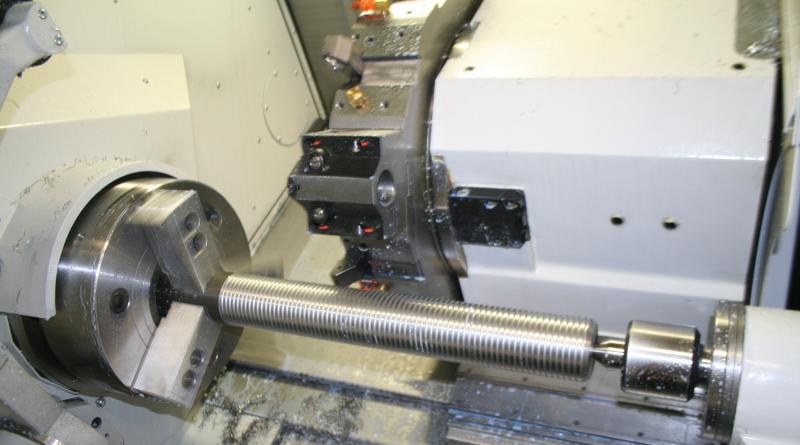

Turning

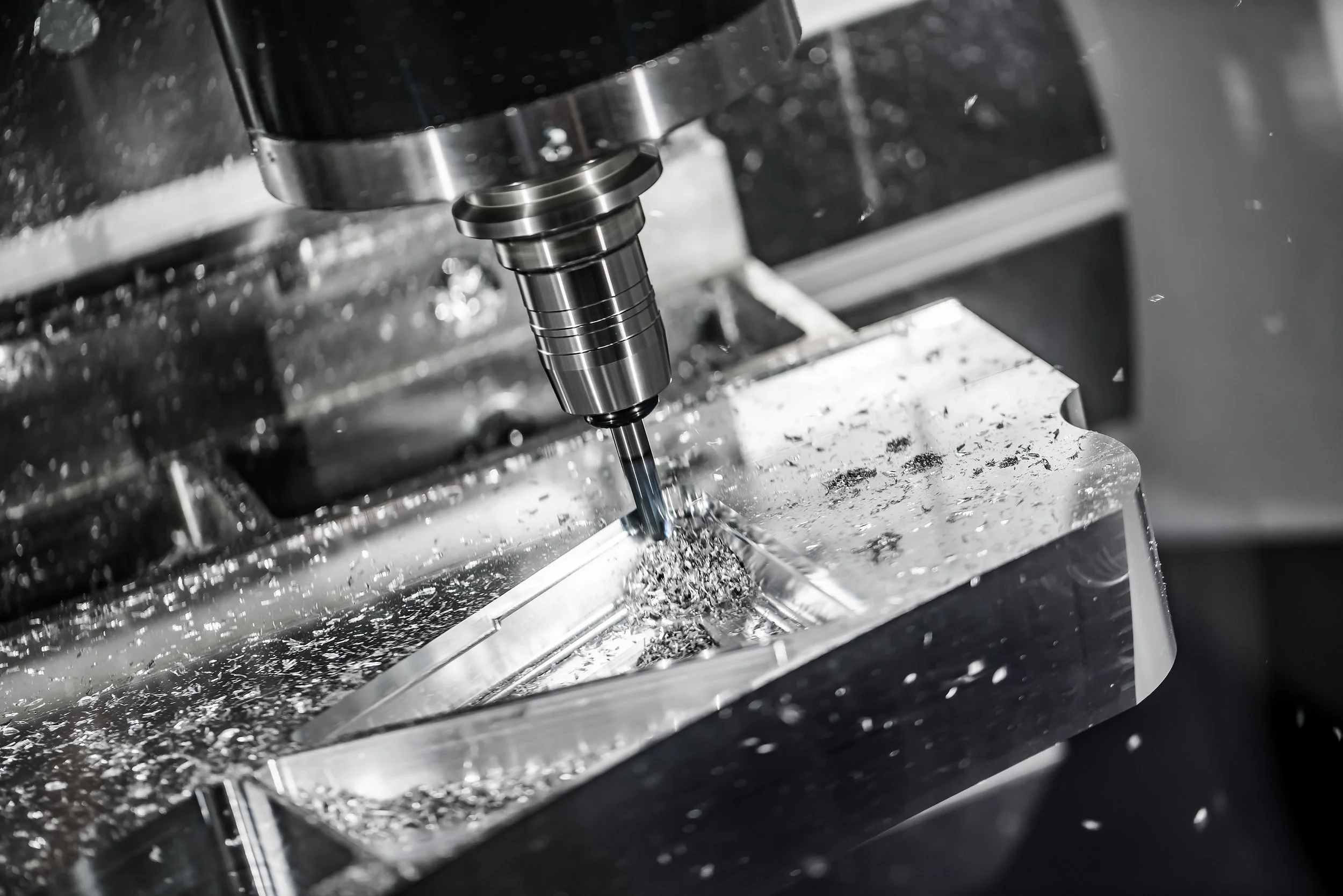

Milling

Inspection

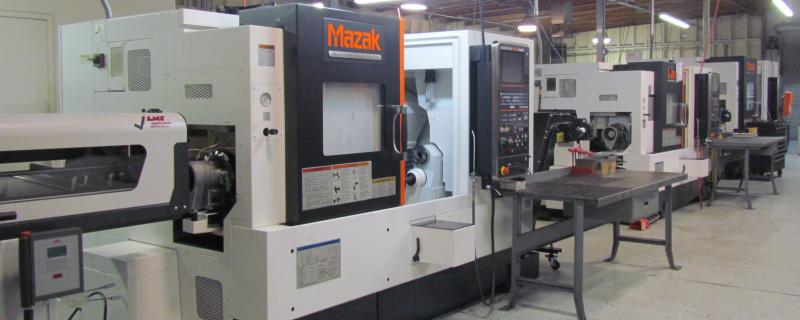

  • Mazak Megaturn 900m

    • 36" max turning diameter
    • 30" chuck
    • milling capabilities

  • mazak quickturn 450m  -  x2

    • 22" max turning diameter
    • 18" chuck
    • milling capabilities

  • mazak quickturn 350  -  x2

    • 18" max turning diameter
    • 15" chuck

  • Mazak QuickTurn 250MY  -  x2

    • 12" max turning diameter
    • 10" chuck
    • milling capabilities
    • 40" z-axis travel

  • mazak quickturn 250  -  X2

    • 12" max turning diameter
    • 10" chuck



  • mazak nexus 510  -  x2

    • 20" x  40" x 16" milling envelope
